Metal Laser Cutting

Cutting of metal. Sparks fly from laser, close-up

Metal Laser Cutting Services

For some parts, laser cutting can be the most economical and fastest way to provide parts. Microphoto provides laser cutting for metal parts or a combination of photo etching and laser cutting. The combination of photo etching and laser cutting produces parts with surface-etched functional detail or script and graphics.

The fabrication process begins with surface details being etched to specification on sheets of metal. After this, the sheets are then fixture registered to the laser bed for precise laser blanking. Parts can then be paint-filled and surface-finished to produce finished parts such as equipment faceplates.

Get A Quote

Laser Cutting Options

Microphoto offers laser cutting with both 3-axis and 5-axis machinery and in a variety of metals. Note that Nitrogen assist gas can be used for Stainless Steel and Aluminum cutting to improve edge conditions so the parts can be welded without further processing.

Two-Dimensional 3-Axis Machine

Our two-dimensional 3-axis machine cuts up to 4000 watts with a sheet size up to 60” x 120”

  • Low Carbon 0.005 – 0.625″ thick
  • High Carbon 0.010 – 0.500″ thick
  • H.S.L.A. 0.047 – 0.500″ thick
  • Aluminum 0.020 – 0.315″ thick
  • Stainless Steel 0.020 – 0.500″ thick
  • Brass 0.010 -0.125″ thick

Three-Dimensional 5-Axis Machine

Our three-dimensional 5-axis machine cuts up to 2000 watts with sheet sizes up to 120” x 60” x 40”

  • metal thickness up to 0.394 inch

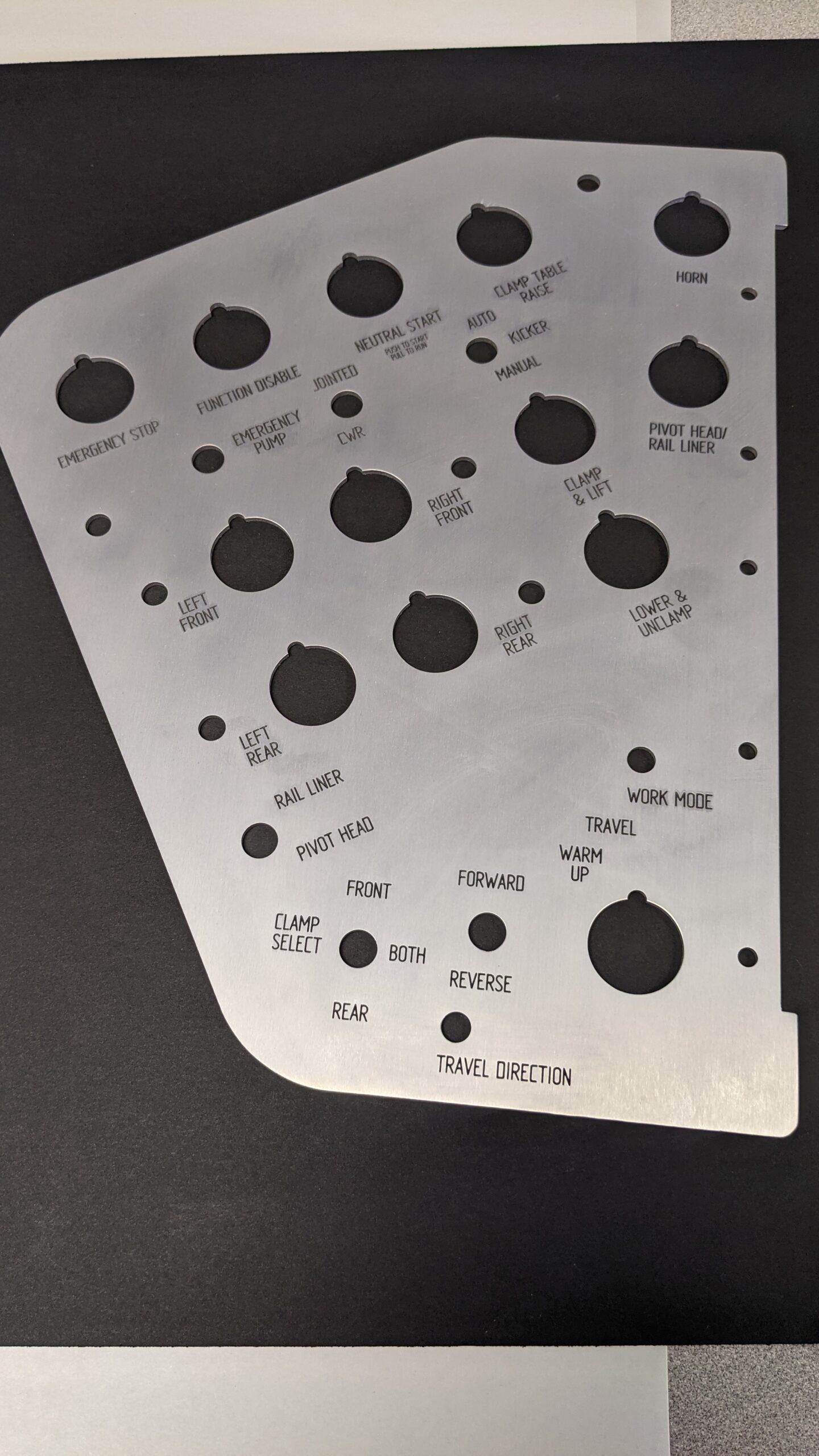

silver laser cut part, several laser cut holes
part that reads NO 3 DC PRIMARY BUS
silver laser cut part, several laser cut holes
