Prototyping is one of the most important phases of product development, but it’s also where hidden risks often slip by unnoticed. Even small design errors early on can snowball into major program delays later down the manufacturing process. A misaligned slot, an undersized feature, or a subtle bending behavior issue can trigger costly redesigns that ripple across schedules, supplier commitments, and downstream assemblies.
This is why the earliest prototypes must be accurate, distortion-free, and reflective of true production intent.
Photochemical machining (PCM) provides one of the safest and most cost-efficient approaches to sheet metal prototyping, especially for thin-gauge metals and complex geometries. Unlike alternative manufacturing methods such as laser cutting or CNC machining, PCM produces burr-free, stress-free, uniform parts without heat or mechanical force. Because no hard tooling is required, the process is ideally suited for rapid design iteration during early development when flexibility and precision matter most.
This article explores why PCM is the safest way to validate design intent, reduce downstream manufacturing risk, and accelerate the path to production. We’ll compare prototype etching against other fabrication technologies, examine how etched prototypes verify form and function, and detail Microphoto’s unique advantages for prototype-to-production programs.
Photochemical etching is a subtractive manufacturing process that uses a photoresist mask and a controlled acid etching process to remove material and create complex patterns in metals. It’s the trusted process for sheet metal fabrication, consistently producing accurate, uniform, and distortion-free thin-metal parts.
Because this process removes metal uniformly without heat or mechanical force, the resulting part retains original material properties and exhibits exceptional dimensional accuracy.
Photochemical machining stands apart from other manufacturing methods because it delivers precise, burr-free parts without heat or mechanical stress, an advantage especially critical during rapid prototyping.
While photo etching excels at producing thin, complex industrial components with tight tolerances, alternative approaches like stamping, laser cutting, or machining often introduce distortion, tooling costs, or feature limitations. Understanding how these processes compare helps engineers choose the safest, most reliable path for proving out early designs before committing to full production.
Here’s how PCM stacks up against other prototype methods:
Photochemical machining produces custom parts that meet production intent without the cost penalties of hard tooling or the distortion risks of laser cutting or CNC machining. This makes PCM the preferred choice for prototyping thin sheet metal parts where precision and flexibility matter.
Accurate prototypes are essential for preventing errors before they reach tooling, qualification, or full production. Etched prototypes uniquely reduce risk by providing true-to-CAD geometry, fast revision cycles, consistent material properties, and superior edge quality.
Because the chemical milling stage (typically ferric chloride in precision etching) removes metal uniformly, engineers gain early insight into factors such as corrosion resistance, thermal conductivity, and strength-to-weight ratio, which are critical for high-performance assemblies across the electronics industry and beyond.
PCM excels at producing the fine details and complex geometries engineers require.
Microphoto’s photo chemical etching process enables:
Because no mechanical force or heat is used, PCM parts experience no stress hardening, bending, or thermal distortion. Engineers get a prototype that behaves predictably, which is critical when validating performance before cutting expensive dies.
Interference issues discovered after tooling is built can delay a program by weeks or months. PCM prototypes allow engineers to test:
Because PCM uses the same metal sheet types, tempers, and thicknesses as production, fit testing reflects real-world behavior rather than an approximation.
Etched prototypes allow teams to evaluate:
This early insight enables better design decisions and reduces surprises during FAI (First Article Inspection) or qualification.
No dies. No punches. No hard tooling.
That means:
For design teams managing tight development windows, PCM is the fastest path to reliable prototypes.
Traditional manufacturing processes require tooling, even for initial samples. Stamping dies can take six to twelve weeks to fabricate. Laser-cutting or CNC-machining setups become longer and more expensive as part complexity increases.
PCM eliminates that entire category of delay.
In fact, the Microphoto team can deliver etched prototypes in days, allowing teams to:
Rapid iteration enables better decision-making earlier, reducing the likelihood of late-stage design changes.
A single redesign or retooling event in stamping can cost tens of thousands of dollars, while laser-cut prototypes often require manual finishing to remove burrs or taper. CNC machining of thin metals introduces additional inefficiencies, making it one of the most expensive and time-consuming approaches for early iterations.
Etched prototypes, by contrast, offer inherent cost control:
By identifying form, fit, and manufacturability issues early, PCM prototypes dramatically reduce downstream rework and tooling adjustments.
Most PCM manufacturers rely on carrier tabs to hold parts in place during processing. These tabs must be broken off after etching, introducing:
Microphoto is the only U.S. supplier with a fully tabless workflow, a unique manufacturing advancement that enhances prototype accuracy and reliability.
No tab remnants means edge behavior is predictable during assembly or flex testing.
Parts remain stable throughout processing, improving batch-to-batch uniformity.

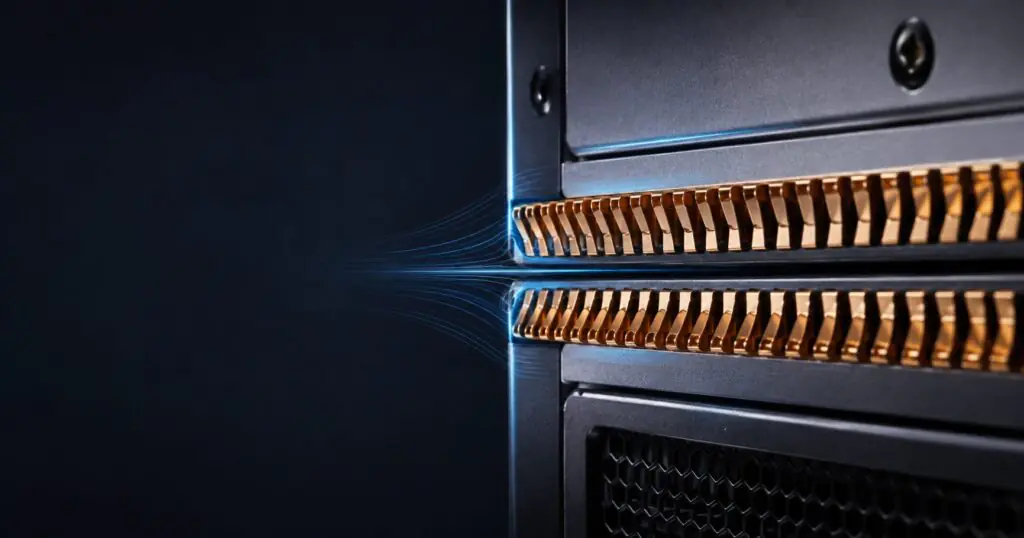

Critical for springs, contacts, fine-feature parts, and EMI shields where behavior depends on precise geometry.
Tabless prototypes behave more like final production parts, making validation more accurate.
Without tab removal, teams save time and cost, and reduce handling-induced variation.
This advantage is particularly impactful during early development when small inconsistencies can cloud test results or mislead design decisions.
PCM isn’t just ideal for prototyping; it’s equally effective for production. Because the same process is used across all volumes, early prototypes become reliable predictors of full-scale manufacturing outcomes.
The CAD artwork remains the production “tooling.” No physical dies to revalidate.
Prototypes and production parts share identical dimensional behaviors.
What you validated in the prototype is what you receive in production.
Whether producing ten parts or ten thousand, the process remains consistent.
Because prototypes are true-to-production, issues don’t emerge late.
Microphoto’s workflow, built around consistency, precision, and repeatability, allows customers to move from concept to production with confidence.
Photochemical etching is ideal for applications where precision, repeatability, and low distortion are essential. This proven process remains the best choice whenever geometry, accuracy, or performance cannot be compromised, especially during early design cycles with frequent modifications.
The most significant risks in metal fabrication occur long before tooling is cut. Errors made during design or early sampling can create cascading delays, retooling costs, and performance issues that jeopardize entire programs.
Photochemical machining offers a safer, faster, and more reliable method for sheet metal prototyping. By producing accurate, burr-free, stress-free prototypes without tooling, the acid-etching process enables engineers to validate design intent early, well before committing to stamping, laser cutting, or CNC machining.
Microphoto’s advanced, fully tabless workflow takes these benefits even further, providing cleaner edges, higher yield, and more consistent prototypes that truly represent final production behavior. As a U.S.-based leader in precision metal manufacturing, Microphoto delivers unmatched reliability, speed, and control from prototype to final production.
When precision, clarity, and low-risk iteration matter, prototype etching is the smartest path forward.
Contact the Microphoto team today to discuss your project or request a quote.
